5mm Green High Flux LED - 525 nm - 90 Degree Viewing Angle

Price:   $0.25

  • Model: HF5-G5590
  • Shipping Weight: 0.01kg
  • 20000000 Units in Stock

(0 reviews)
(complete orders today,deliverd around 25/07/2026)
  • Shipping time
    About 2-3 days.
  • means of transportation
    EMS,TNT,UPS,DHL,FEDX,HK AIR
  • Payment
    Paypal,Western Union
  • Email us
    Sales@ledstripbulbs.com
New Products
55x75mm Pendant LED Profile Housing For Flexible LED Strip Lights Installations - LED Linear Pendant Lights - LS5575 Series
$34.95
35mm Wide Up/Down LED Aluminum Channel For Flexible Strip Lights Installations - LED Linear Lights - LS3535 Series
$25.95
38x80mm Pendant LED Profile Housing For Flexible LED Strip Lights Installations - LED Linear Pendant Lights - LS3880 Series
$34.95
50mm Wide Up/Down LED Aluminum Channel For Flexible Strip Lights Installations - LED Linear Lights - LS5035 Series
$29.95
  • Details
  • Reviews
  • Tags
  • FAQ

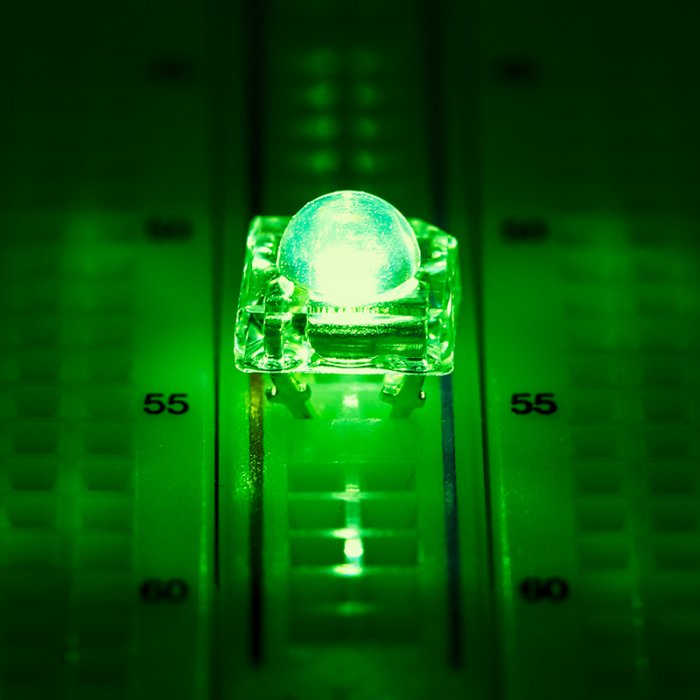

5mm High Flux Green LED. Features 525nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.



Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.2V
LED Color: Green
LED Package: 5 mm High Flux
Lens: Clear
Lumen: 10 Lumen
Maximum Forward Voltage: 3.5V
Millicandela: 5500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Total Power Consumption: 0.064 Watts
Viewing Angle: 90 degree
Wavelength: 525 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.27" (1cm) x 0.27" (1cm)
All specifications are subject to change without notice.
